You want power. You want performance. You want portability. You want Calon Gloria.

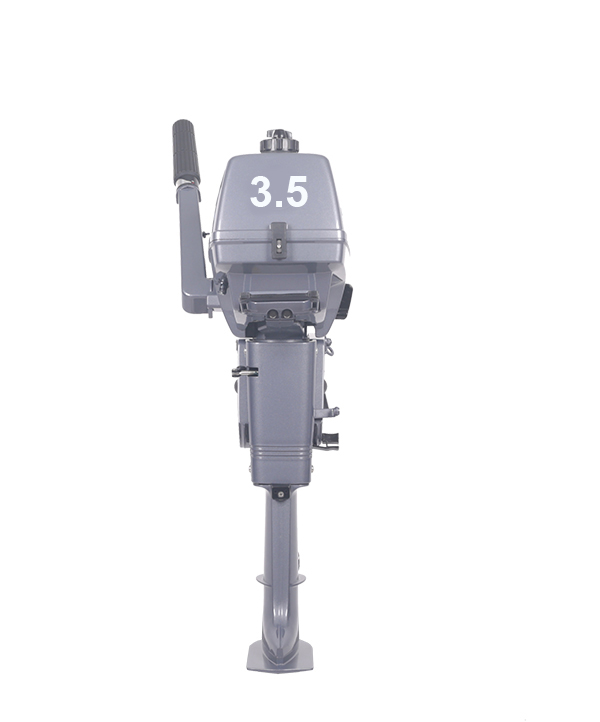

Calon Gloria 3.5 hp outboard would make a great outboard motor for any small watercraft such as a small sailboat, kicker dingy, jon boat, canoe, inflatable, portable boat, water tender skiff, or any other watercraft need that can accommodate a 36lbs. 2-stroke 20" short Shaft outboard motor.
Overview
CalonGloria 2-stroke benefits
●Excellent reliability with proven 2-stroke technology
●Simple in design
Easy operation and handling
●Loop charged induction for smooth operation and fuel economy
●CD ignition system for quicker starts,Light weight and easy to transport
Fundamentals for user convenience and reliability
●Through-the-prop exhaust for a quiet ride
●Thermostatically controlled cooling system for consistent engine temperature
●Stainless steel water pump housing for outstanding durability
●High grade marine aluminum alloy that provides the ultimate protection against corrosion
●Zinc coating on internal water passages for superior corrosion resistance
●Aluminum propeller
Protection
●Safety lanyard (an essential protection feature standard on all CalonGloria outboards)
●Start-in-gear protection for safer engine starting
AVAILABLE MODELS: T3.5BS - Manual Start, Tiller Handle, Transom height - Standard
Specifications
| Type | Two Stroke | |
| Maximum output | 3.5hp (2.55kw) | |
| Dimensions | mm | S: 628*289*997 L: 628*289*1124 |
| Weight | kg | S: 16.5 L: 17 |
| Maximum operating range | rpm | 4500-5500 |
| Fuel consumption at W.O.T | L/Hr | |
| Number of cylinder | 1 | |
| Bore x Stroke | mm | 46.0 x 42.0 |
| Displacement | cm³ | 70.0 |
| Gear oil quantity | L | 0.075 |
| Cooling system | Water/Thermostatic Control | |
| Starting system | Choke valve | |
| Ignition | CDI | |
| Spark plug | NGK BR7HS-10 | |
| Idel speed | rpm/min | 1200±50 |
| Spark plug gap | mm | 0.9-1.0 |
| Engine oil | Genuine recommended 2 stroke engine oil | |
| Oil Ratio Fuel Mixture : | 50:1 | |
| Fuel tank capacity | L | 1.4 |
| Speed control | Twist grip type | |
| Gear ratio | 2.08 (27:13) | |
| Gear Shift | F-N Shift |
Please consult to your local distributor if any questions.
▲Due to CalonGloria’s ongoing commitment to product improvement, we reserve the right to change without notice, equipment, materials, or specifications.
